Ammonia Chillers

For central ammonia plants

  Capacities up to 1,000 Tons

  Available with Tank & Pumps

  Shell-and-Tube or PHE Models

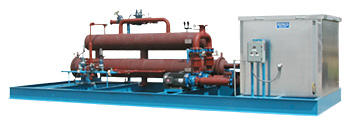

Repaco ammonia chillers are designed to operate with the customer's central ammonia refrigeration system. They are especially well suited for cooling applications in the food and beverage industry.

Chillers are available using shell-and-tube evaporators or with semi-welded plate-and-frame evaporators. The plate-and-frame models also make ideal ingredient water chillers.

Repaco ammonia chillers include all necessary liquid line valves and controls, suction pressure regulating valve and ammonia level controls. The chillers can also include circulating tanks and pumps.

 |  Home  |  About Us  |  Contact Us  |
Phone:
Fax:
812-867-0900
812-867-0800

sales@repaco.net



ArrowCompletely assembled

Repaco Ammonia Chillers are completely piped and ready to be connected to the central ammonia system, making installation fast and simple.

ArrowAll refrigeration controls are included and installed

All necessary shut-off and control valves, relief valves and level controls.

ArrowComplete with all electrical controls

Temperature is controlled by a 4-20 mA digital controller, which works in conjunction with a sealed motor EPR valve to provide accurate temperature control.

ArrowAvailable in Shell-and-Tube and Plate Heat Exchanger versions
ArrowLeaving temperatures down
to -40°F
